Description:

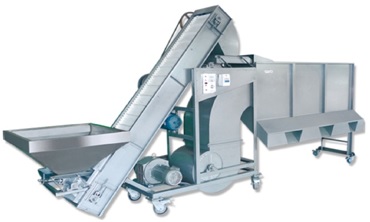

The Tea Winnowing Sorting Machine uses a large air volume motor to screen different sizes of tea leaves (different in size and weight of tea) by the blowing of the wind.
Different wind speeds can be adjusted for different tea leaves to achieve the best screening effect.
It can screen out the tea powder, fragmented tea, strip teas of different lengths, granular teas of different sizes etc. It is suitable for most tea production and is an indispensable screening device for tea factories.
In addition to screening tea, other materials can also be screened, such as for herb removal of impurities, peanut peeling, seeds, and rhizomes, etc., which is an ideal device for screening small and medium materials.
Advantages:
Specifications:
|
MODEL |
DL-6CFX-40 |
|---|---|
|
DIMENSIONS (L*W*H) |
4080×760×2130 MM |
|
VOLTAGE / FREQUENCY |
380/50 V/HZ |
|
FEEDING METHOD |
HOISTER |
|
GRADE |
4 LEVEL |
|
FAN SPEED CONTROL MODE |
YCT SPEED REGULATION |
|
FAN POWER |
1.5 KW |
|
MOTOR SPEED |
1400 R/MIN |
|
RATED VOLTAGE |
380 V |
|
HOIST POWER |
1.1 KW |
|
LIFTING HEIGHT |
1560 MM |
|
CONOVEYING BANDWIDTH |
225 MM |
|
OUTPUT PER HOUR |
500 KG/H |
If you have special need, it can be customized according to the needs of customers.
